Box trailer

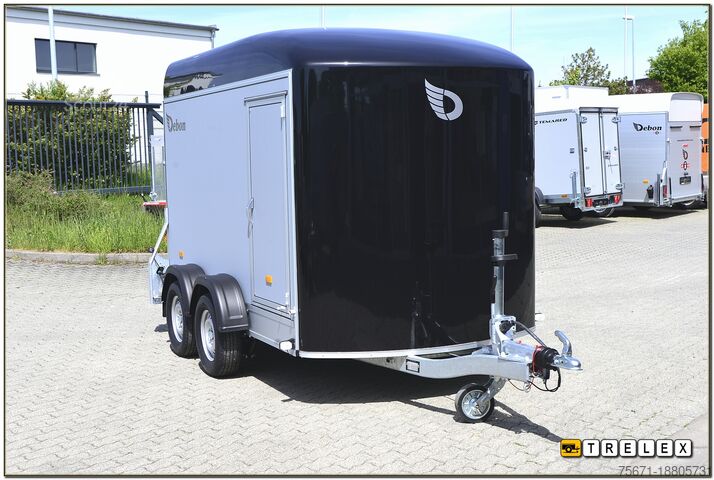

Cheval Liberté Roadster C500.02 SDW mit Seitentür

Debon Roadster C500.02 SDW with Side Door

Poly-Hybrid Box Trailer, Tandem Axle, Pullmann2 Suspension

Side door new with central rotary lock (image may differ slightly!)

Technical Data:

• Permissible total weight: 2000 kg
• Tandem axle
• Unladen weight: 625 kg
• Payload: 1375 kg
• Internal dimensions (LxWxH): 313 x 165 x 195 cm (full height from approx. 1m from front)
• Clear rear loading aperture (WxH): 163 x 185 cm
• Wall height (aluminum): 163 cm
• Internal side height: 195 cm
• Floor panel length (aluminum): 277 cm
• Ramp length: 147 cm - Upper flap: 40 cm
• Overall dimensions (LxWxH): approx. 440 x 215 x 235 cm
• Side door clear opening: 130 x 63 cm
• Tires: 185/70R13
• Load height: 34 cm
• Maximum speed: 100 km/h

Body and Equipment:

• Poly-front/roof combination in aerodynamic design
• Side walls in honeycomb core sandwich (plastic), light grey
• Pullmann suspension with coil springs and shock absorbers (factory 100 km/h certification)
• Coupling with automatic reversing device and parking brake
• Floor in aluminum panels with anti-slip profile, front round section reinforced in steel
• 6 folding lashing rings, mounted on floor at the sides, each with 250 kg load capacity
• Robust, welded, hot-dip galvanized frame
• Centrally mounted automatic jockey wheel
• Rear ramp and upper flap in coated steel sheet (two-part)
• Rear ramp: anti-slip aluminum interior, pivoting/swiveling, with gas struts
• Rear ramp with right-side lock, lockable
• Individual plastic mudguards, black
• 12V electrics – 13-pin plug – reversing light
• Interior lighting
• Rear light units protected and installed in side struts

Optional at extra cost:

• Version with sandwich or aluminum walls
• Version with side flap
• Aluminum wheels
• Custom load securing options such as airline rails, anchor rails, slat lashing rails, tie-down recesses, load bars, etc.
Crjdpfx Anov S R Udjtei
• Motorcycle transport accessories such as front wheel chocks, etc.
• Special installations available on request
