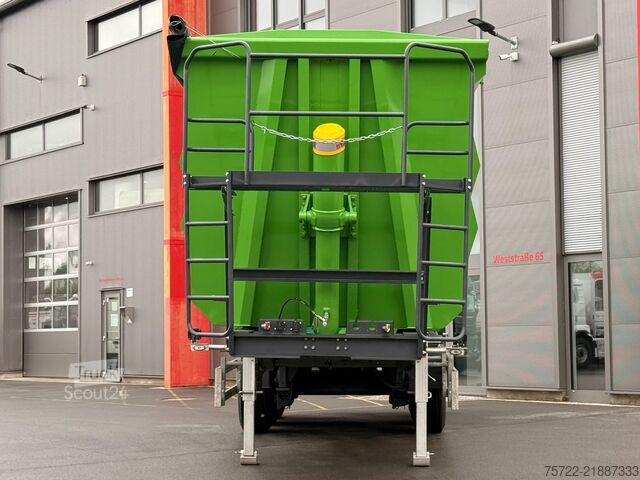

PAVIC Muldenkipper 55m³ Mulde mit Resonator

- EBS

Brand new at PAVIC.

Available immediately!

PAVIC 3-axle 55m³ tipping trailer with lift axle

Technical specifications:
Coupling height: 1250 mm
Length: approx. 10,522 mm
Width: approx. 2,300 mm
Height: approx. 2,380 mm
Technical axle group load capacity: 27,000 kg
Technical kingpin load capacity: 12,000 kg
Unladen weight: 8,520 kg

CHASSIS:
Heavy-duty and extra-durable I-beam main frame; manufactured from high-strength MC700 steel, welded using an automatic robotic welding process.

BODY:
Capacity: 55 m³
Floor plate: HARDOX450, thickness 5 mm
Side walls: HARDOX450, thickness 4 mm
Front wall: HARDOX450, thickness 4 mm
Rear door: HARDOX450, thickness 4 mm

A resonator/vibrator is installed under the structure at the front to help loosen stuck bulk materials when tipped (see pictures).

TIPPER BODY:
Tipping body with hydraulic tailgate. Suitable for agriculture, forestry, recycling (scrap), and more.

HYDRAULIC CYLINDER (LIFT):
Heavy-duty hydraulic cylinder (brand HYVA – C), single-circuit

AXLES:
3 × 9-ton SAF CD (BI9–22S) axles with disc brakes (SBS2220)

SUSPENSION:
Air suspension.

LIFT AXLE:
Automatic lift axle on the 1st axle.

TYRES:
6 × 385/65R22.5 (premium brand tires)

WHEELS:
6 × steel rims

BRAKE SYSTEM:
WABCO braking system
2-line brake system according to EU regulations
EBS 2S/2M
Pneumatic parking brake
1 × yellow air coupling
1 × red air coupling
1 × brake pressure valve
TPMS (tire pressure monitoring system)

KINGPIN:
1 position, 2” (brand JOST or SAF)

LANDING LEGS:
Dsdpfx Asy N Tngjpgocg
Mechanical aluminum landing legs. Each leg is operated via its own locking device (after coupling).

ELECTRICAL SYSTEM:
Voltage: 24 V
2 × 7-pin and 1 × 15-pin ISO connectors
EEC-compliant lighting as standard:
SAE tail lights
Side marker lights
Brake warning lights
Rear signal lights

Lighting ASPÖCK (EUROPOINT III):
2 combination tail/brake lights (red)
2 combination indicator lights (orange)
1 license plate light

ACCESSORIES:
6 × mudguards
2 × mud flaps
2 × reflective tapes and reflective plates, rear and side
1 × rear underrun protection
2 × wheel chocks with holders
1 × side aluminum protection
1 × toolbox
1 × working platform (painted and bolted)
1 × rollable tarpaulin (including mechanical support bar)

PAINTWORK:
Before painting, surfaces are smoothed and then cleaned.
Then: sandblasting according to SA 2.5, followed by:
2 coats of primer
2 coats of acrylic topcoat

RAL colors:
Chassis (KTL): black
Body: green (similar to RAL 6016 yellow green)

For further inquiries, our sales team will be happy to assist you.

This is a non-binding offer. Subject to prior sale, errors, and changes.

General information
Year of manufacture: 2026

Axle configuration
Tire size: 385/65-22.5
Brakes: disc brakes
Suspension: air suspension...
