VOLVO FH 540 8x2 EFFER Kran JIB IQ.1200 HP. E-9

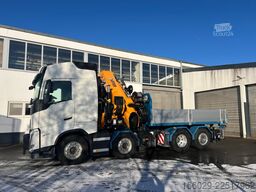

Volvo FH 540 8x2 with EFFER Crane

Truck:
• FH 8x2R NLA air suspension
• Application cycle: Long-distance transport
• Predominantly flat topography
• Gross combination weight, technical: 60 t (observe towing capacity of drawbar coupling!)
• Rear-view mirrors for body width 2600 mm

Main Components
• Chassis height: MED (medium)
• Trailing axle, electro-hydraulically steered, single tyres
• Rear axle suspension with air suspension: 1 drive axle, 1 trailing axle
• Globetrotter safety cab FH
• Wheelbase: 4,900 mm
• Emissions according to Euro 6, with SCR, particulate filter, and exhaust gas recirculation
• Diesel engine 12.8 l, 551 hp/405 kW, 2,652 Nm
Kedpszthhmefx Ac Tenb
• Volvo Engine Brake+ (VEB+) (meets ADR braking regulations)
• I-Shift AT2612, automated 12-speed gearbox (direct drive), max. input torque: 2,652 Nm
• Liftable axle
• Rear axle RSS1370C, axle load 13 t, GCW 70 t, differential lock
• Drive axle ratio 3.08:1

Chassis
• Air suspension on front axle(s)
• Lifting on front axle air suspension: Basic (more ground clearance, reduced lift range)
• Front axle load max. 20 t (technical) for double front axle
• Rear axle load max. 23 t (technical)
• First trailing axle 10.0 t
• Volvo Dynamic Steering (VDS) including Stability Assist
• Disc brakes, solid discs
• EBS, Electronic Braking System, Medium package
• AGM batteries, 2 x 210 Ah
• 275 l fuel tank, left (plastic)
• AdBlue tank, usable capacity 57 l (between the front axles)

Trailer / Coupling
• Rockinger 400 G-150 drawbar coupling (observe D-value/max. trailer load!)
• Electrical connection for semi-trailer/trailer, 15-pin (ADR possible)
• Duomatic coupling

Wheels and Tyres
• Dura-Bright EVO aluminium rims (polished)
• FA Tyres 385/65R22.5 (Continental Conti Eco HS5, 3PMSF)
• DA Tyres 315/80R22.5 (Continental Conti Eco HD5, 3PMSF)
• NLA Tyres 385/65R22.5 (Continental Conti Eco HS5, 3PMSF)
• Tyre pressure monitoring with internal sensors

Crane
• Effer E-9 Jib.155Q-6 JDC
• JIB
• Winch

Body
• All necessary chassis work for crane installation, including vehicle frame modification.
• Compliance with body builder guidelines of the relevant chassis manufacturer for all work.
• Complete installation of a specially developed auxiliary frame from high-tensile steel.
• Welded and bolted auxiliary frame for high torsional rigidity and optimum stability (unique feature).
• Supply/installation of front support legs
• Assembly/bolting of the crane and main support, including installation of all hydraulic and electrical connections.
• Usable as a tractor unit via removable/sliding Jost fifth wheel (JOST JSK SL), superstructure removable.
• Removable flatbed body as high-profile welded steel construction (approx. 4,250 mm x 2,480 mm, A-dimension open).
• Flatbed equipment: Container locks, Multisafe/Multifix stanchion pockets and retractable lashing eyes (2,500 daN / 6,500 daN).
• Removable aluminium drop sides and rear underrun protection (extendable) incl. additional/front support.

Further information on request.
