Faymonville Maxtrailer F-S42-1BBA 5.5 Meter Extandable!

= Additional Options and Accessories =

- Air suspension

= Notes =

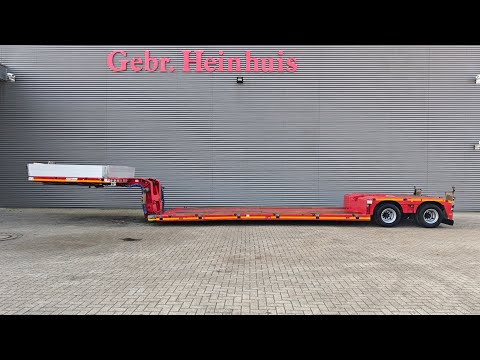

Faymonville Maxtrailer F-S42-1BBA.

Year of manufacture: 2023.
12-ton BPW axles.
Tare weight: 12,706 kg.
Payload: 34,294 kg.
Total weight: 47,000 kg.
Fifth wheel load: 23,000 kg.
Hydraulic connection according to NATO standard.
EBS, ABS, ALB.
Hydraulically detachable gooseneck.
Extendable by 5.5 meters.
Gooseneck height: 27 cm.
Widening: 2 x 25 cm.
Galvanized.
Preparation for twist locks.
Nedpszw Duqsfx Ap Howk
Forced steering.
Air suspension.
Tires: 245/70R17.5 (tread depth 70%).
Dimensions:
Gooseneck:
L: 3850 mm.
W: 2500 mm.
H: 1550 mm.
Fifth wheel height: 1250 mm.
Loading platform:
L: 6700 mm.
W: 2550 mm.
H: 400 mm.
Floor thickness: 200 mm.
Rear area:
L: 2700 mm.
W: 2550 mm.
H: 950 mm.

Overall dimensions:
L: 13,900 mm.
W: 2550 mm.
H: 2000 mm.

ID No.: 550.

The General Terms and Conditions of Heinhuis apply to all advertisements, offers, and quotations from Heinhuis, as well as to all contracts concluded by Heinhuis and the negotiations preceding them. By making any form of contact, you accept the validity of Heinhuis's General Terms and Conditions and declare that you have taken note of these General Terms and Conditions. Our prices are net export prices.

= Further Information =

Axle configuration
Tire size: 245/70R17.5
Axle brand: BPW
Suspension: Air suspension
Rear axle 1: Double tires; Max. axle load: 12000 kg; Steered; Tire tread depth left inside: 70%; Tire tread depth left outside: 70%; Tire tread depth right inside: 70%; Tire tread depth right outside: 70%
Rear axle 2: Double tires; Max. axle load: 12000 kg; Steered; Tire tread depth left inside: 70%; Tire tread depth left outside: 70%; Tire tread depth right inside: 70%; Tire tread depth right outside: 70%

Weights
Tare weight: 12,706 kg
Payload: 34,294 kg
GVW: 47,000 kg

Functional
Loading platform height: 40 cm

Condition
Technical condition: very good
Optical condition: very good
Damage: none
