Plattformtrailer

Faymonville SPZ-4AAAX

= Additional Options and Accessories =

- Air suspension
- Central lubrication system

= Notes =

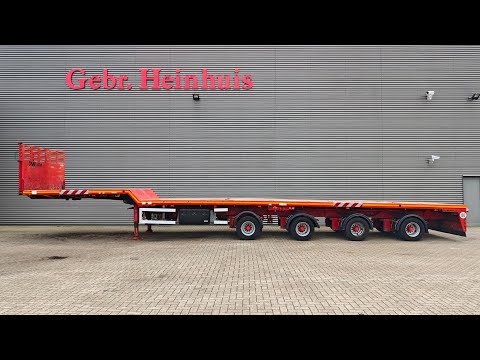

Faymonville SPZ-4AAAX.

Year of manufacture: 2007.
10-ton BPW axles.
Unladen weight: 14,500 – 16,000 kg.
Max. gross vehicle weight: 65,000 kg.
Kingpin load: 25,000 kg.
Hydraulic connection according to NATO standard.
Forced steering (4 steering axles).
1st axle designed as a lift axle.
Air suspension.
Galvanized.
Storage boxes.
EBS, ABS, ALB.
3-stage extendable.
Total extension: 25.1 meters.
Total length: 40.3 meters.
Dimensions of loading platform:
Gooseneck:
L: 4300 mm.
W: 2550 mm.
H: 1500 mm.
Kingpin height: 1200 mm.
Loading platform:
L: 10,730 mm.
W: 2550 mm.
H: 1200 mm.
Tires: 235/75R17.5 (tread depth 70 %).

Dimensions:
L: 15,430 mm.
W: 2550 mm.
H: 3050 mm.

Dedpfx Ajzzyvxek Eowb
German semi-trailer!

3 UNITS AVAILABLE!!

ID No.: 638.

The General Terms and Conditions of Heinhuis shall apply to all advertisements, offers and quotations from Heinhuis, as well as to all contracts concluded by Heinhuis and the negotiations preceding them. By making any form of contact, you accept the applicability of Heinhuis's General Terms and Conditions and confirm that you have taken note of these conditions. Our prices are net export prices.

= Further Information =

Axle configuration
Tire size: 235/75R17.5
Axle brand: BPW
Suspension: Air suspension
Rear axle 1: Twin tires; Lift axle; Max. axle load: 10000 kg; Steered; Tire tread depth left inner: 70%; Tire tread depth left outer: 70%; Tire tread depth right inner: 70%; Tire tread depth right outer: 70%
Rear axle 2: Twin tires; Max. axle load: 10000 kg; Steered; Tire tread depth left inner: 70%; Tire tread depth left outer: 70%; Tire tread depth right inner: 70%; Tire tread depth right outer: 70%
Rear axle 3: Twin tires; Max. axle load: 10000 kg; Steered; Tire tread depth left inner: 70%; Tire tread depth left outer: 70%; Tire tread depth right inner: 70%; Tire tread depth right outer: 70%
Rear axle 4: Twin tires; Max. axle load: 10000 kg; Steered; Tire tread depth left inner: 70%; Tire tread depth left outer: 70%; Tire tread depth right inner: 70%; Tire tread depth right outer: 70%

Weights
Unladen weight: 14,500 kg
Payload: 50,500 kg
GVW: 65,000 kg

Condition
Technical condition: good
Optical condition: good

Financial Information
Price: On request
