FAE RCU 75 Mulchraupe Mulcher Forstmulcher

>, new machine
>, Manufacturer FAE
>, Type radio remote controlled mulching caterpillar
>, model RCU 75


Lsdpfx Ajtkdm Asa Dsta
Standard equipment:

>, Kohler KDI 2504 engine with turbocharger and intercooler
>, DOC/DPF exhaust gas aftertreatment
>, Hydrostatic drive
>, Hydrostatic drive for attachments
>, Auxiliary hydraulics for implements
>, Load control function (Load Control)
>, Quick attachment plate with tilt and float system
>, Independent hydraulically variable track width 1700 mm - 2100 mm
>, High-profile rubber tracks and bogie roller system
>, Combined aluminum radiator with anti-clogging slats
>, Proportional reversible fan with hydraulic control
>, Ergonomic joystick controls
>, 3.5 inch LCD color display on the remote control
>, Remote control with two batteries and battery charger on board the machine
>, 7-inch LCD color display on the machine
>, LED working lights
>, Floating function



Technical data:

>, engine output 74 hp
>, exhaust emission stage EU Stage V
>, traction pumps 2 - EP control - 28 cc - Danfoss
>, Traction motors 2 - HY control - 38 cc - Danfoss
>, Max. Travel pressure 325 bar
>, Pump attachment 1 - EP control unit - 45 cc - Danfoss
>, Max. Mulcher pressure 300 bar
>, Hydraulic oil tank - 46 l
>, Fuel tank - 63 l
>, Track chain 86 pitch - 320 mm width - High profile
>, Track rollers 6 + 6 HD style - Triple flange - Bogie sys.
>, Front Idler / Tensioning Group triple flange - Automatic tensioning system
>, Voltage 12 V
>, Max. Forward speed 7.5 km/h
>, Max. Reverse speed 7.5 km/h
>, gradeability 55° - all directions
>, Operating weight 3470 kg (standard equipment, std. track)
>, Ground pressure 0.35 kg / cm2

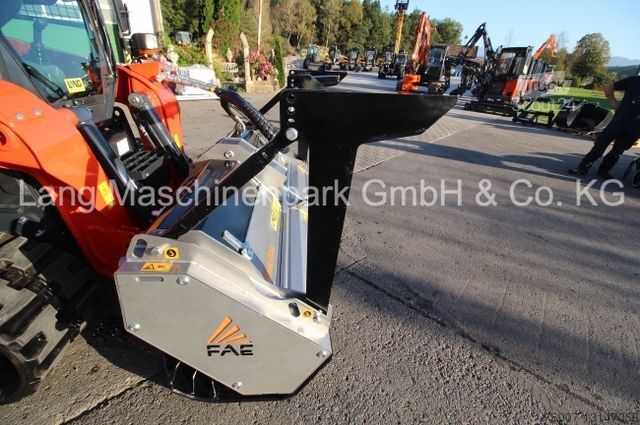

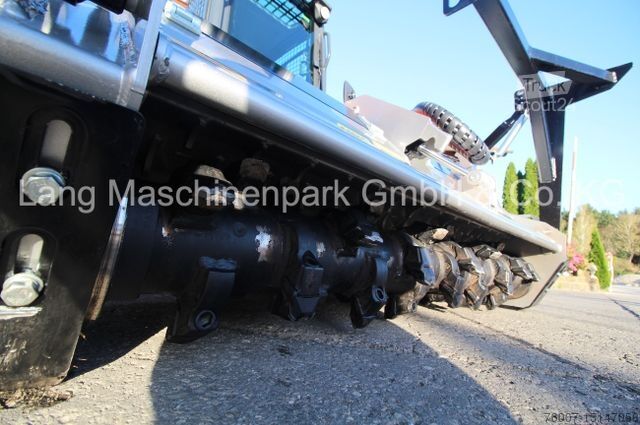

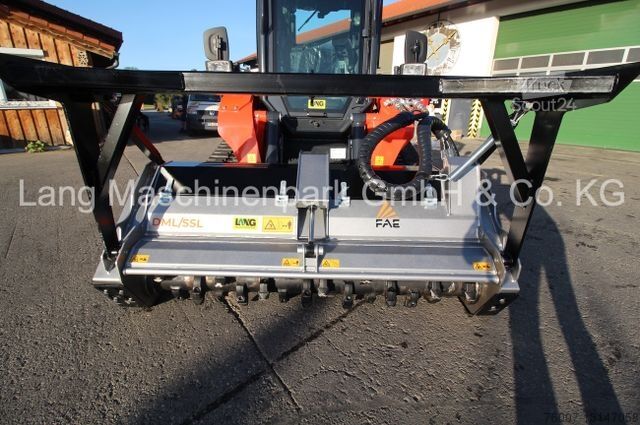

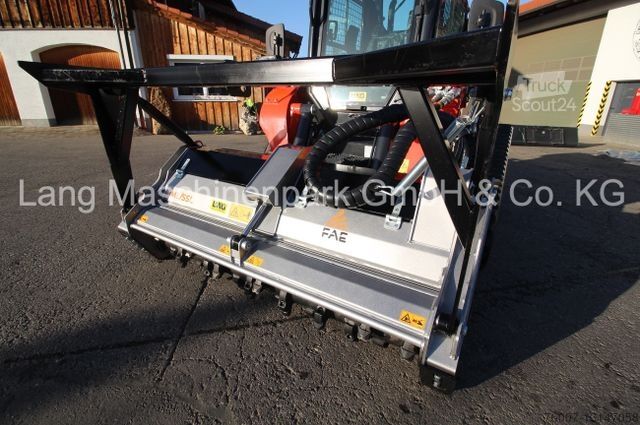

Attachments - Forestry mulcher

>, type BL2/RCU 150
>, working width 1480 mm
>, total width 1776 mm
>, weight 800 kg
>, rotor diameter 360 mm
>, number of blades Mini C/3 - 28 pieces
